Overview - Instrument Panel

The overview shows a LHD vehicle as an example.

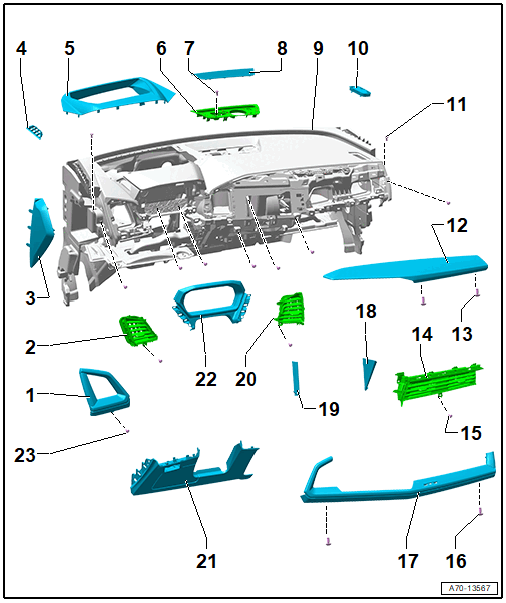

Fig 1: Exploded View Of Instrument Panel

Courtesy of AUDI OF AMERICA, LLC

1. Driver Side Instrument Panel Decorative Trim
   • Refer to DRIVER SIDE INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING
2. Driver Side Outer Instrument Panel Vent
   • Refer to Outer Instrument Panel Vent, Removing and Installing  .
3. Instrument Panel Side Cover
   • Refer to Instrument Panel Side Cover, Removing and Installing  .
4. Driver Side Side Defroster Vent
   • Refer to Side Defroster Vent, Removing and Installing  .
5. Cover for Instrument Panel/Windshield Projection (Head Up Display)
   • Equipped on some models
   • Refer to INSTRUMENT PANEL/WINDSHIELD PROJECTION (HEAD-UP DISPLAY) COVER, REMOVING AND INSTALLING  .
6. Front Center Defroster Vent
   • Refer to Front Center Defroster Vent, Removing and Installing  .
7. Bolt
   • For the center front center defroster vent to the instrument panel
   • 1.5 Nm
8. Speaker Trim
   • Refer to Speaker Trim, Removing and Installing  .
9. Instrument Panel
   • Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING  .
10. Front Passenger Side Side Defroster Vent
    • Refer to Side Defroster Vent, Removing and Installing  .
11. Bolt
    • For the instrument panel to the crossmember
    • Quantity: 9
    • 3 Nm
12. Instrument Panel Decorative Trim, Upper Front Passenger Side
    • Refer to FRONT PASSENGER SIDE UPPER INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING
13. Bolt
    • For the upper front passenger side instrument panel decorative trim to the instrument panel
    • Quantity: 2
    • 3 Nm
14. Front Passenger Side Outer Instrument Panel Vent
    • Refer to Outer Instrument Panel Vent, Removing and Installing  .
15. Bolt
    • For the instrument panel vent to the instrument panel
    • One piece per vent
    • 1.5 Nm
16. Bolt
    • For the front passenger side decorative trim to the instrument panel
    • Quantity: 2
    • 3 Nm
17. Instrument Panel Decorative Trim, Lower Front Passenger Side
    • Refer to FRONT PASSENGER SIDE LOWER INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING
18. MMI Screen Cover, Front Passenger Side
    • Refer to MMI SCREEN COVER, REMOVING AND INSTALLING  .
19. MMI Screen Cover, Driver Side
    • Refer to MMI SCREEN COVER, REMOVING AND INSTALLING  .
20. Center Vent
    • Refer to Center Vent, Removing and Installing  .
21. Driver Side Instrument Panel Cover
    • Refer to Driver Side Instrument Panel Cover, Removing and Installing .
22. Instrument Cluster Trim
    • Refer to Instrument Cluster Trim, Removing and Installing  .
23. Bolt
    • For the driver side instrument panel decorative trim to the instrument panel
    • 1.5 Nm
