Sill Panel Trim, Removing And Installing: Installing

Install in the reverse order of removal, while noting the following:

-- Pay attention to the repair information adhesive surfaces for adhesive tape. Refer to REPAIR INFORMATION .

-- Remove the protective films from the adhesive tapes -2-.

Courtesy of AUDI OF AMERICA, LLC

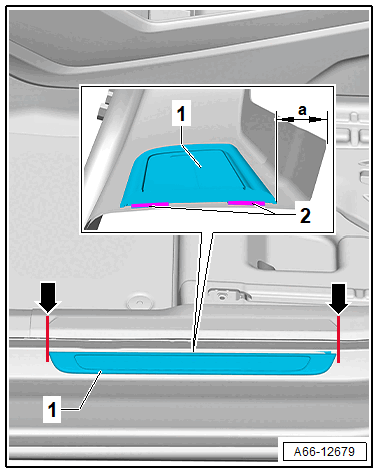

-- Align the sill panel trim -1- as shown on the sill panel -arrows-.

Condition

• Dimension -a- = 7 mm

-- Push the sill panel trim -1- onto the side sill using the Roller :3356  .
