Side Sill Trim Panel, Removing And Installing: Removing

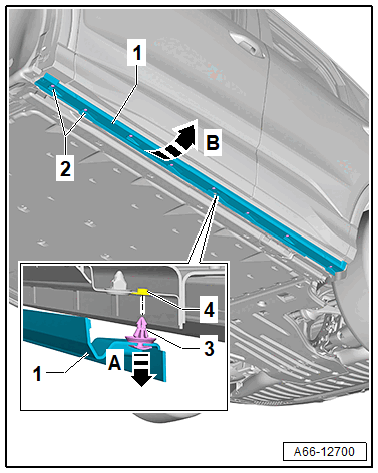

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen and free up the wheel housing liner in the area of the side sill trim panel -1-. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING  .

-- Unclip the clip -3- from the grommet -4- -arrow A-.

-- Pivot out the side sill trim panel -1- out of the wheel arch trim and side sill seal -arrow B-.
