Overview - C-Pillar Trim

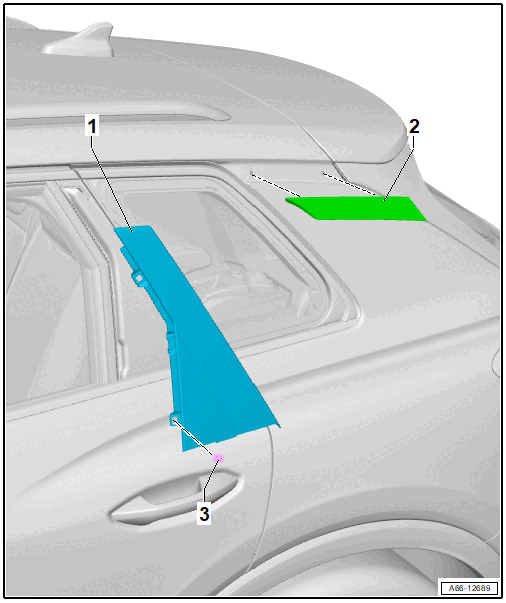

Fig 1: Identifying C-Pillar Trim Components
GWWA66-12689Courtesy of AUDI OF AMERICA, LLC
  1. Door C-Pillar Trim
  2. C-Pillar Trim
  3. Expanding Rivet
    • Quantity: 2
