C-Pillar Trim, Removing And Installing: Installing

Install in the reverse order of removal, while noting the following:

-- Pay attention to the repair information adhesive surfaces for adhesive tape. Refer to REPAIR INFORMATION .

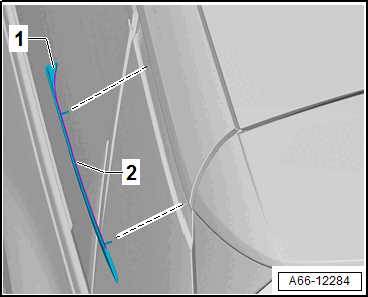

-- Remove the protective film from the adhesive tape -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the C-pillar trim -1- using the alignment pin in the C-pillar mounts.

-- Press on the C-pillar trim -1- using the Trim Removal Wedge :3356  .
