Overview - Bumper Carrier

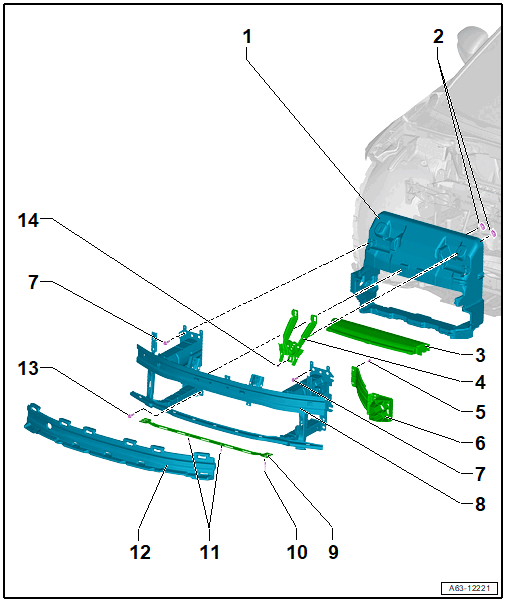

Fig 1: Exploded View Of Front Bumper Carrier

Courtesy of AUDI OF AMERICA, LLC

Air Duct
Lock Washer
- Quantity: 4
Sealing Strips
Lock Carrier Support
- Refer to OVERVIEW - LOCK CARRIER .
Bolt
- Quantity: 2
- 8 Nm
Wheel Alignment
- Refer to WHEEL ADJUSTING ELEMENT, REMOVING AND INSTALLING
Bolt
- Quantity: 8
- 55 Nm
Bumper Carrier
- Refer to Bumper Carrier, Removing and Installing .
- Refer to BUMPER CARRIER SERVICE POSITION, SETTING AND RESETTING .
Lock Carrier Support
Pop Rivet
- Quantity: 4
Expanding Nut
- Quantity: 2
Foam Filler Piece
Bolt
- Quantity: 4
- 30 Nm
Nut
- Refer to OVERVIEW - LOCK CARRIER .
