Side Sill Reinforcement, Replacing: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

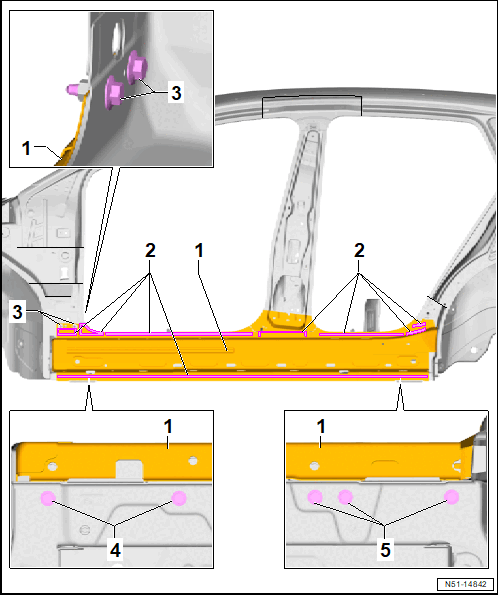

Fig 1: Side Sill Reinforcement Component Location
GWWN51-14842Courtesy of AUDI OF AMERICA, LLC
  1. Side Sill Reinforcement
  2. Bonded Areas
  3. Bolt
    • Inner A-Pillar
    • Quantity: 2
    • 55 Nm
  4. Bolt
    • Front underbody
    • Quantity: 2
    • 55 Nm
  5. Bolt
    • Rear underbody
    • Quantity: 3
    • 55 Nm
