Side Panel Reinforcement, Replacing, Crash Bolster: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

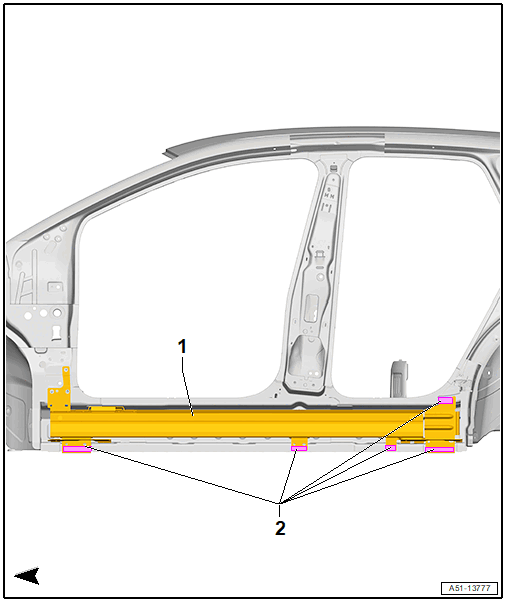

Fig 1: Side Panel Reinforcement Component Location
GWWA51-13777Courtesy of AUDI OF AMERICA, LLC
  1. Side Panel Reinforcement (Crash Bolster)
    • Aluminum Extrusion Profile
  2. Bonded Areas
