Roof, Replacing, Vehicles With Panorama Roof: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

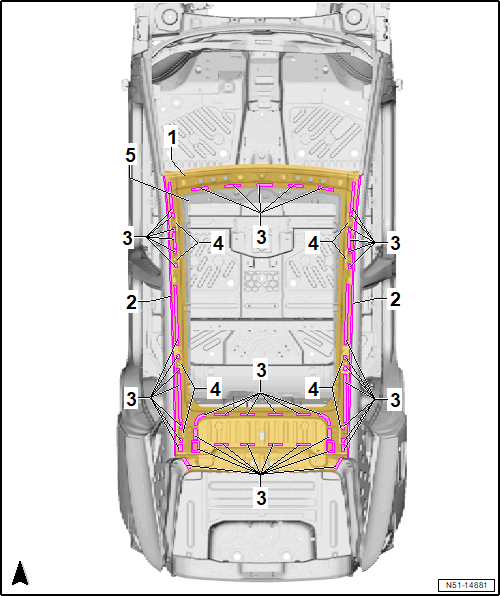

Fig 1: Roof And Bonded Area Components Location - Vehicle With Sun-Roof

Courtesy of AUDI OF AMERICA, LLC

1. Roof
2. Plasmatron Seam
   • Cannot be restored, is replaced with a bonded joint
3. Bonded Areas
4. Roof Railing Bracket
5. Reinforcement Frame
