Roof, Replacing, Vehicle Without Panorama Tilting Sunroof: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

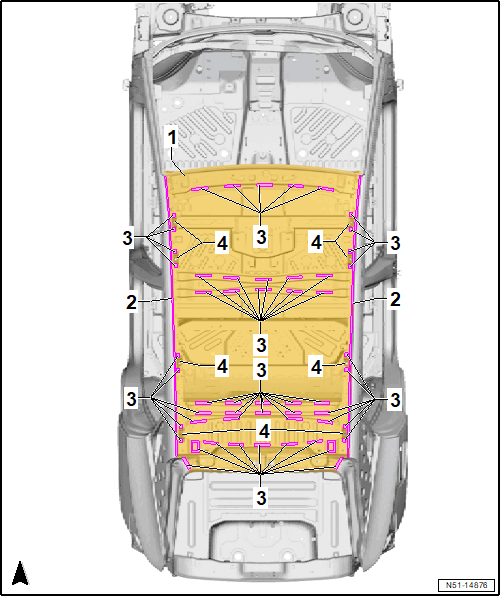

Fig 1: Roof And Bonded Area Components Location - Vehicle Without Sunroof

Courtesy of AUDI OF AMERICA, LLC

1. Roof
2. Plasmatron Seam
   • Cannot be restored, is replaced with a bonded joint
3. Bonded Areas
4. Roof Railing Bracket
