Roof Pillar, Replacing, SPORTBACK: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

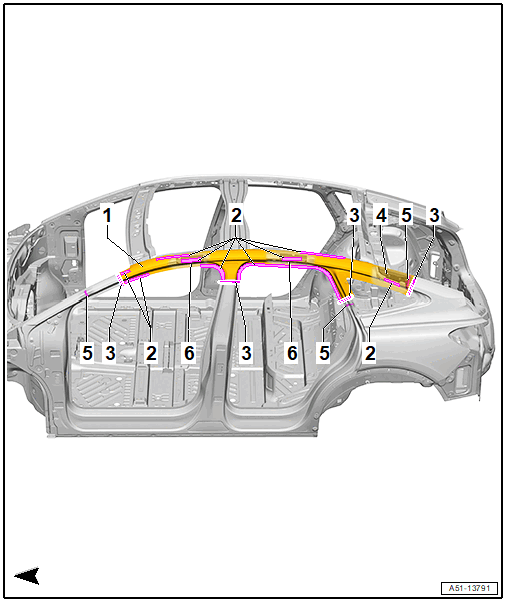

Fig 1: Roof Pillar Component Location
GWWA51-13791Courtesy of AUDI OF AMERICA, LLC
  1. Roof Pillar
  2. Bonded Areas
  3. Separating Cuts
  4. Gas-Filled Strut Reinforcement
  5. Molded Foam Parts
  6. Roof Tailgate Reinforcement
