Outer Side Sill, Replacing: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

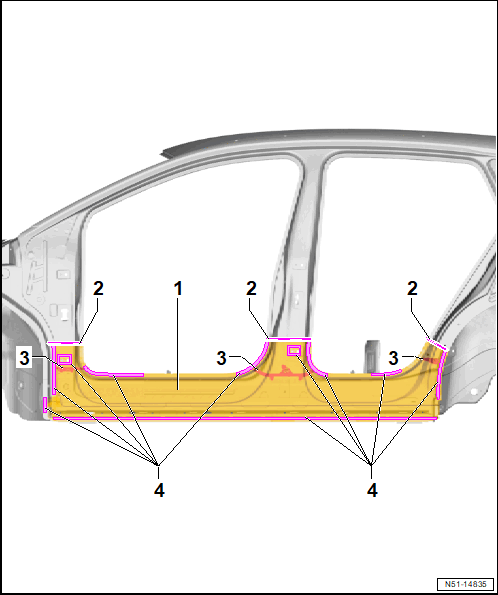

Fig 1: Outer Side Sill Component Location
GWWN51-14835Courtesy of AUDI OF AMERICA, LLC
  1. Outer Side Sill
  2. Separating Cuts
  3. Molded Foam Parts
  4. Bonded Areas
