B-Pillar, Replacing: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

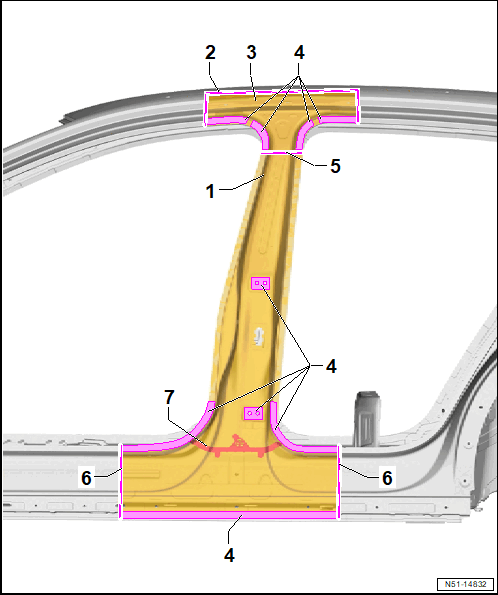

Fig 1: B-Pillar And Separation Cut Components Location

Courtesy of AUDI OF AMERICA, LLC

B-Pillar
Separation Cut for Extended Repair Area
Expanded Repair Area
NOTE:
If B-pillar reinforcement must be replaced, the expanded repair area must be cut out when cutting out the B-pillar.
Bonded Areas
Upper B-Pillar Separation Cut
Side Sill Separation Cut
Molded Foam Part
