A-Pillar, Replacing: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

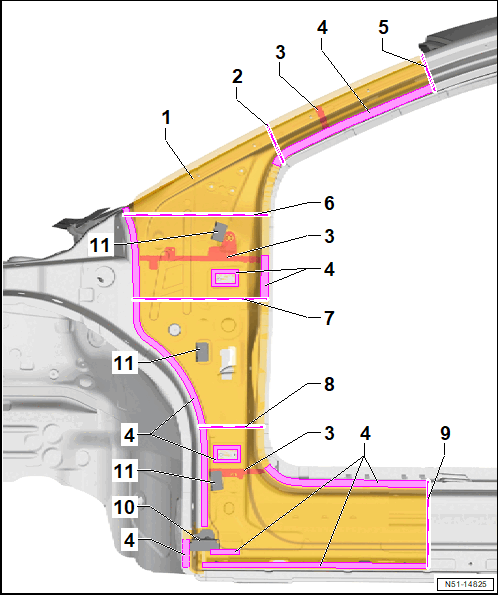

Fig 1: A-Pillar Component Location

Courtesy of AUDI OF AMERICA, LLC

A-Pillar
Separation Cut
With this separation cut, a partial replacement of the A-pillar is possible.
Molded Foam Parts
Bonded Areas
Roof Pillar Separation Cut
Separation Cut
With this separation cut, a partial replacement of the A-pillar is possible.
Separation Cut
With this separation cut, a partial replacement of the A-pillar is possible.
Separation Cut
With this separation cut, a partial replacement of the A-pillar is possible.
Side Sill Separation Cut
End Panel with Lower Fender Bracket
Fender Bracket
