A-Pillar Reinforcement, Replacing - Partial Replacement: Notes

NOTE:

Observe the safety precautions. Refer to SAFETY PRECAUTIONS .

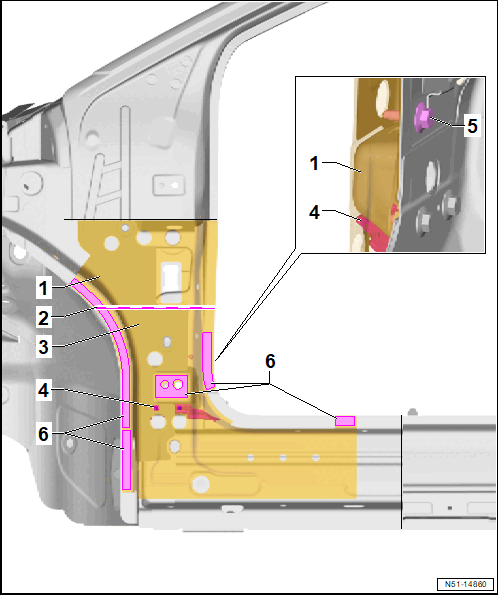

Fig 1: A-Pillar Reinforcement Component Location

GWWN51-14860

Courtesy of AUDI OF AMERICA, LLC

A-Pillar Reinforcement
Separation Cut
Separation cut is permitted for the partial replacement.
A-Pillar Connecting Plate
- Installed inside
Molded Foam Part
Bolt
- 55 Nm
Bonded Areas
