Overview - Cover And Cushion

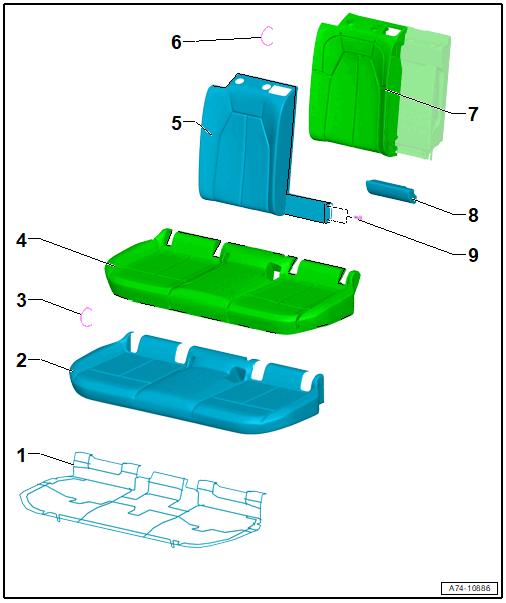

Fig 1: Exploded View Of Rear Seat Covers And Cushions

GWWA74-10886

Courtesy of AUDI OF AMERICA, LLC

Seat Frame
- Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .
Seat Cushion
- Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .
- Refer to Rear Bench Seat Cover and Cushion, Separating .
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing
Seat Cover
- Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .
- Refer to Rear Bench Seat Cover and Cushion, Separating .
Backrest Cover
- Refer to Rear Seat Backrest Cover and Cushion, Removing and Installing .
- Refer to Rear Seat Backrest Cover and Cushion, Separating .
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing
Backrest Cushion
- Refer to Rear Seat Backrest Cover and Cushion, Removing and Installing .
- Refer to Rear Seat Backrest Cover and Cushion, Separating .
Center Cushion
- Refer to Center Cushion, Removing and Installing, Backrest with Pass-Through .
Clip
- Equipped on some models: vehicles with backrest with a pass-through
- For attaching the cover to the backrest frame
- Quantity: 2
