Seat Trim Panel Bracket, Removing And Installing: Removing

-- Remove the outer seat trim panel. Refer to Outer Seat Trim Panel, Removing and Installing  .

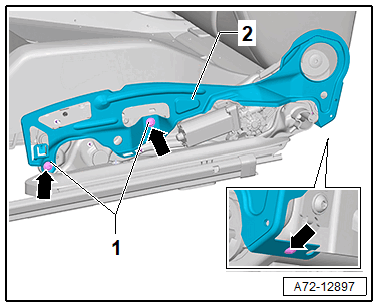

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivet -arrow-.

-- Remove the seat frame trim panel bracket -2-.
