Seat Height Adjustment Handle, Removing And Installing: Removing

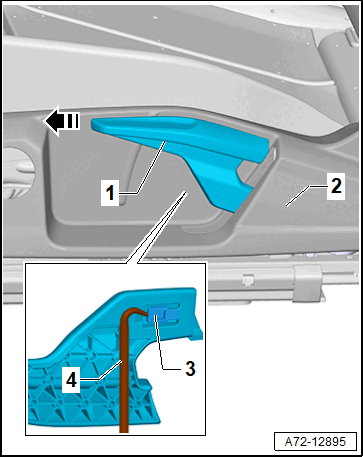

-- Pull the seat height adjustment handle -1- as far upward as possible and hold it there.

GWWA72-12895Courtesy of AUDI OF AMERICA, LLC

-- Guide the T-Handle Hook :3438  -4- between the seat height adjustment handle and seat trim panel -2-.

-- Release the inner side locking tab -3- with the T-Handle Hook :3438  and remove the seat height adjustment handle at the same time toward the front in the -arrow- from the lever.
