Lumbar Support, Removing And Installing: Removing
-- Remove the cover and cushion from the backrest. Refer to Backrest Cover and Cushion, Removing and Installing .

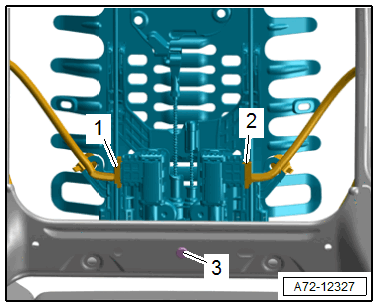

-- Release and disconnect the connectors -1- and -2-.
CAUTION:
Risk of injury due to flying metal shavings.
Irritation and injury to skin and eyes possible.
- Wear protective eyewear.
- Wear safety gloves.
-- Drill out the rivet -3-.
-- Unclip and free up the wiring harness from the lumbar support.
-- Move the lower lumbar support -1- forward, pivot it out of the backrest frame, disengage it at the top of the backrest frame -2- -arrows- and remove it.
