Component Location Overview - Instrument Panel Lamps

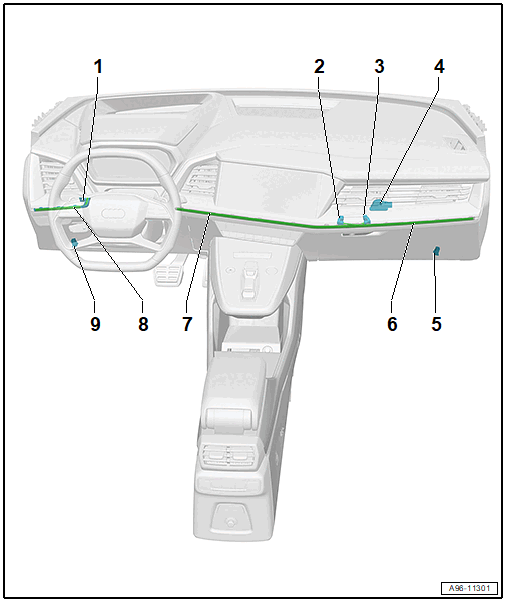

Fig 1: Identifying Instrument Panel Lamps

Courtesy of AUDI OF AMERICA, LLC

1. Instrument Panel Contour Illumination Lamp 1 -L243-
   • Refer to INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP, REMOVING AND INSTALLING
2. Instrument Panel Contour Illumination Lamp 3 -L245-
   • Refer to INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP, REMOVING AND INSTALLING
3. Instrument Panel Contour Illumination Lamp 2 -L244-
   • Refer to INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP, REMOVING AND INSTALLING
4. Glove Compartment Lamp -W6-
   • Refer to Glove Compartment Lamp -W6-, Removing and Installing  .
5. Right Front Footwell Lamp -K269-
   • Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP K268/K269, REMOVING AND INSTALLING  .
6. Fiber-Optic Cable
   • For Instrument Panel Contour Illumination Lamp 3 -L245-
   • Integrated into the instrument panel lower decorative trim
   • Can only be replaced together with the front passenger side instrument panel lower decorative trim if faulty
   • Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
7. Fiber-Optic Cable
   • For Instrument Panel Contour Illumination Lamp 2 -L244-
   • Integrated into the instrument panel lower decorative trim
   • Can only be replaced together with the front passenger side instrument panel lower decorative trim if faulty
   • Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
8. Fiber-Optic Cable
   • For the Instrument Panel Contour Illumination Lamp 1 -L243-
   • Integrated into the driver side instrument panel decorative trim
   • Can only be replaced together with the driver side instrument panel decorative trim if faulty
   • Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
9. Left Front Footwell Lamp -K268-
   • Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP K268/K269, REMOVING AND INSTALLING  .
