Component Location Overview - Instrument Panel Controls

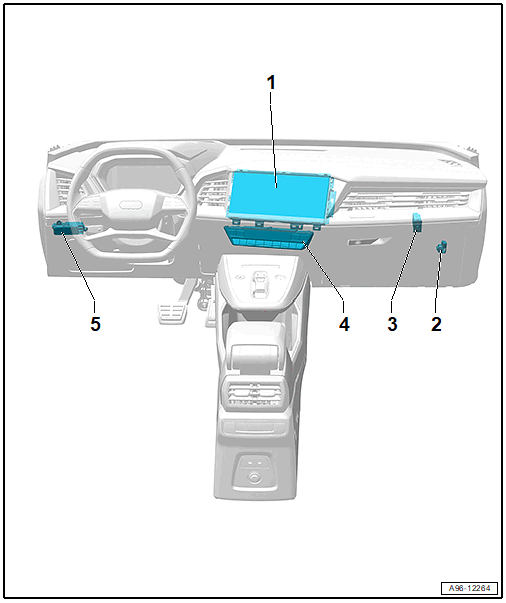

Fig 1: Identifying Instrument Panel Controls

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head -J685-
   • Refer to FRONT INFORMATION DISPLAY CONTROL HEAD J685, REMOVING AND INSTALLING
2. Glove Compartment Lamp Switch -E26-
   • Refer to GLOVE COMPARTMENT LAMP SWITCH E26, REMOVING AND INSTALLING  .
3. Front Passenger Airbag Deactivation Key Switch -E224-
   • Refer to the appropriate service information .
4. Front A/C Display Control Head -E87-
   • Refer to FRONT A/C DISPLAY CONTROL HEAD -E87-, REMOVING AND INSTALLING .
5. Light Switch -E1-
   • Refer to LIGHT SWITCH E1, REMOVING AND INSTALLING  .
