Component Location Overview - Controls In Roof Trim Panel

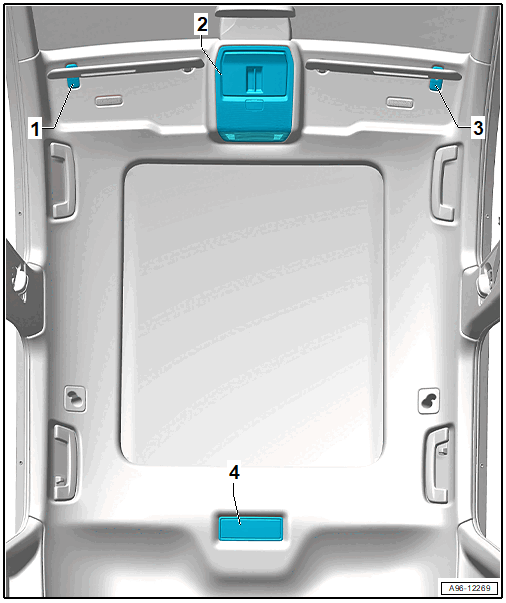

Fig 1: Identifying Controls In Roof Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Right Vanity Mirror Contact Switch -F299-
- Integrated into the sun visor pivot bearing
- Can only be replaced with the sun visor if faulty
- Refer to SUN VISOR, REMOVING AND INSTALLING .
Front Roof Module -WX3-
- with Left Front Reading Lamp Button -E633-, Right Front Reading Lamp Button -E634- and Roof Shade Button -E584-
- With Emergency Call Button -E276-
- The roof module must be replaced if a component is faulty.
- Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Left Vanity Mirror Contact Switch -F298-
- Integrated into the sun visor pivot bearing
- Can only be replaced with the sun visor if faulty
- Refer to SUN VISOR, REMOVING AND INSTALLING .
Rear Interior Lamp -WX2-
- with Left Rear Reading Lamp Switch -E454- and Right Rear Reading Lamp Switch -E455-
- The roof module must be replaced if a component is faulty.
- Refer to Rear Interior Lamp/Reading Lamp, Removing and Installing .
