Component Location Overview - Controls In Luggage Compartment

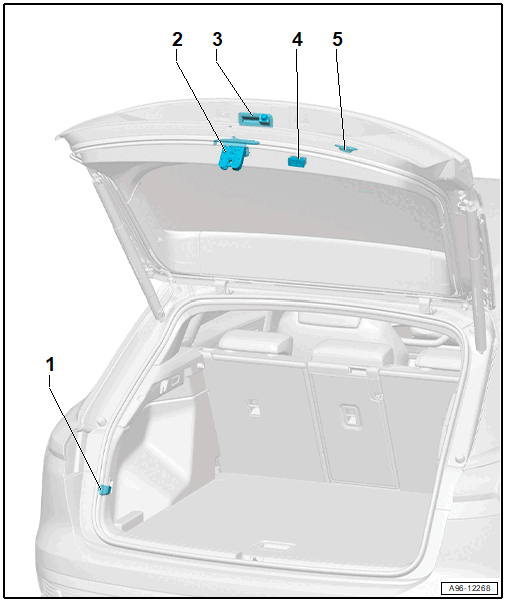

Fig 1: Identifying Controls In Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Trailer Hitch Release Button -E754-
   • Refer to TRAILER HITCH RELEASE BUTTON E754, REMOVING AND INSTALLING  .
2. Rear Lid Contact Switch
   • Integrated in the Rear Lid Lock Unit -VX25-
   • Can only be replaced together with the Rear Lid Lock Unit -VX25- if faulty
   • Refer to OVERVIEW - REAR LID .
3. Release Button In Rear Lid Handle -E234-
   • Refer to RELEASE BUTTON IN REAR LID HANDLE E234, REMOVING AND INSTALLING
4. Rear Lid Control Head -EX58-
   • With Rear Lid Closing Button -E574-
   • with Locking Mechanism Button in the Rear Lid -E806-
   • With Push Button Illumination Bulb -L76-
   • Refer to Rear Lid Control Head EX58, Removing and Installing  .
5. Rear Lid Warning Buzzer -H32-
   • Refer to Rear Lid Warning Buzzer H32, Removing and Installing  .
