Component Location Overview - Controls In Center Console

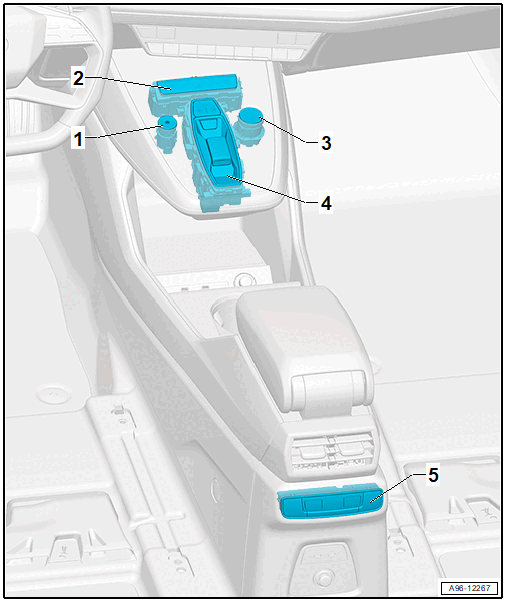

Fig 1: Identifying Controls In Center Console

Courtesy of AUDI OF AMERICA, LLC

1. Start System Button -E378-
   • Refer to Start System Button E378, Removing and Installing  .
2. Control Unit 1 for Driving and Convenience Functions -E791-
   • with Emergency Flasher Button -E229-, ASR/ESP Button -E256- and the Driving Profile Selection Button -E735-
   • The roof module must be replaced if a component is faulty.
   • Refer to CONTROL UNIT 1 FOR DRIVING AND CONVENIENCE FUNCTIONS E791, REMOVING AND INSTALLING
3. Driver Volume Control -E67-
   • Refer to DRIVER VOLUME CONTROL E67, REMOVING AND INSTALLING .
4. Selector Lever -E313-
   • Refer to SHIFT MECHANISM, REMOVING AND INSTALLING, 0MH , or SHIFT MECHANISM, REMOVING AND INSTALLING, 0MP .
5. Rear A/C Display Control Head -E265-
   • Refer to REAR A/C DISPLAY CONTROL HEAD E265, REMOVING AND INSTALLING .
