Overview - Cigarette Lighter, 12 V Socket

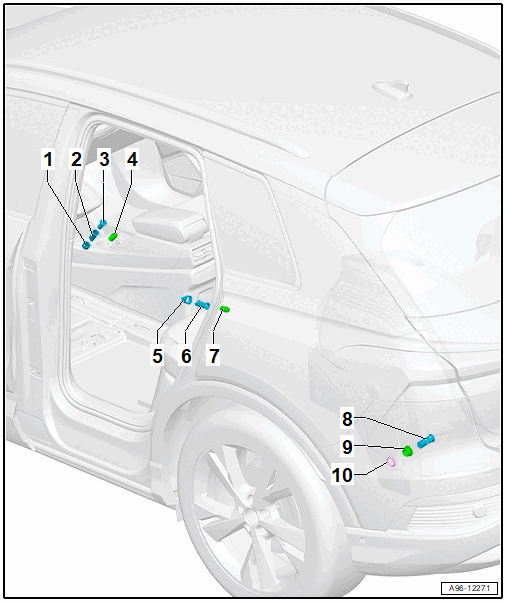

Fig 1: Identifying Cigarette Lighter, 12 V Socket Components

Courtesy of AUDI OF AMERICA, LLC

1. Illumination Ring
   • Version: without illumination
   • Refer to ILLUMINATION RING, REMOVING AND INSTALLING
2. 12 V Socket -U5-
   • Refer to 12 V SOCKET U5, REMOVING AND INSTALLING
3. Cigarette Lighter
   • Equipped on some models
4. 12 V Socket Blind Cover
   • Equipped on some models
5. Illumination Ring
   • Version: without illumination
   • Refer to ILLUMINATION RING, REMOVING AND INSTALLING
6. 12 V Socket 2 -U18-
   • Refer to 12 V SOCKET 2 U18, REMOVING AND INSTALLING
7. 12 V Socket Blind Cover
8. 12 V Socket 3 -U19-
   • Refer to 12 V Socket 3 U19, Removing and Installing  .
9. Mount with Cover
10. Nut
    • 2 Nm
