Overview - Instrument Panel Cover, Driver Side

The overview shows a LHD vehicle as an example.

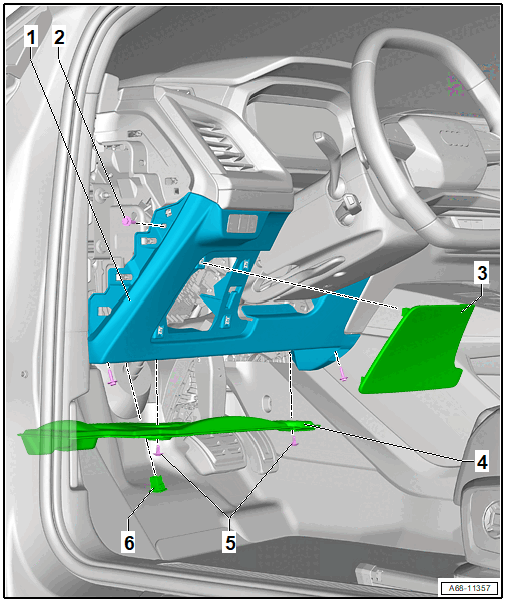

Fig 1: Identifying Instrument Panel Cover Components, Driver Side

Courtesy of AUDI OF AMERICA, LLC

1. Driver Side Instrument Panel Cover
   • Refer to Driver Side Instrument Panel Cover, Removing and Installing  .
2. Bolt
   • Quantity: 3
   • 3 Nm
3. Cover
   • for fuse box
4. Driver Side Footwell Cover
   • Refer to Driver Side Footwell Cover, Removing and Installing  .
5. Expanding Rivets
   • Quantity: 2
6. Left Front Footwell Lamp -K268-
   • Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP K268/K269, REMOVING AND INSTALLING .
