Roof Grab Handle, Removing And Installing: Installing
Install in the reverse order of removal, while noting the following:
Conditions
- A spacer must always be installed.
-- Replace any fasteners that are damaged.
-- Make sure the wires are not pinched.

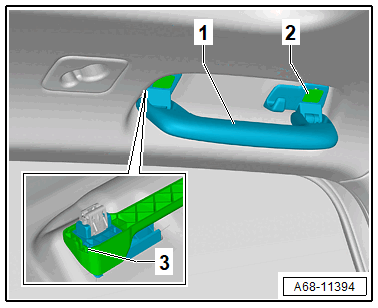

-- Engage the roof grab handle -1- to the spacer.
Conditions
- The hooks -3- must engage.
-- Position the roof grab handle -1- and press on it until it audibly engages in the body.
-- Press in the caps -2-.
