Overview - Roof Grab Handle

The overview shows the right rear side of the vehicle as an example

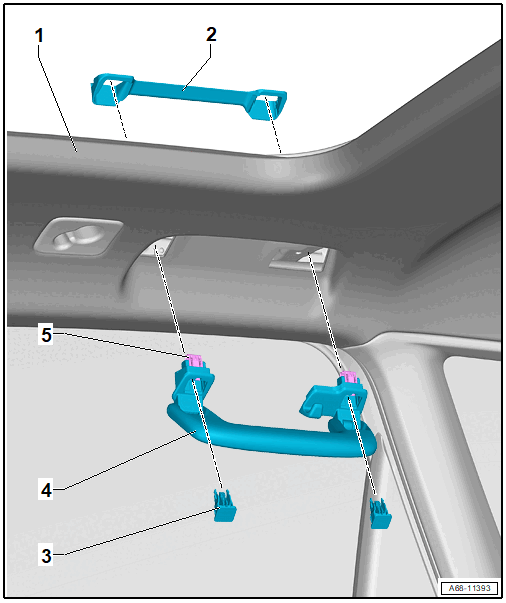

Fig 1: Exploded View Of Roof Grab Handle

Courtesy of AUDI OF AMERICA, LLC

1. Headliner
   • Refer to Overview - Headliner .
2. Spacer
3. Cap
   • Quantity: 2 per handle
4. Roof Grab Handle
   • Refer to Roof Grab Handle, Removing and Installing  .
5. Clip
   • Quantity: 2 per handle
