Control Center, Removing And Installing: Removing

-- Remove the center console insert. Refer to Center Console Insert, Removing and Installing  .

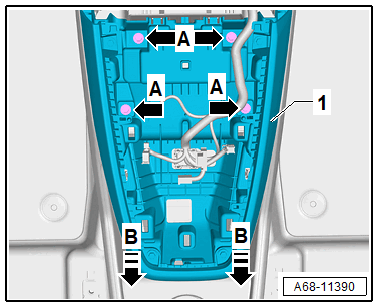

-- Remove the bolts -arrows A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the control center -1- from the instrument panel -direction of the arrow B-.

-- Release and disconnect the connectors.
