Center Console Insert, Removing And Installing: Removing

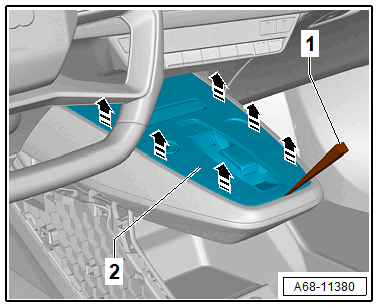

-- Unclip the center console insert -2- all around from the control center using a suitable trim removal wedge -1- -direction of the arrow-.

GWWA68-11380Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors.
