Overview - Instrument Cluster

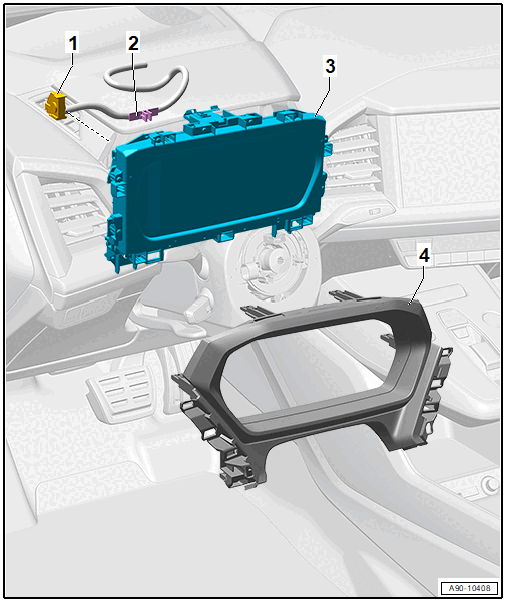

Fig 1: Exploded View Of Instrument Cluster

GWWA90-10408

Courtesy of AUDI OF AMERICA, LLC

Connector
Bracket
Instrument Cluster
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Refer to INSTRUMENT CLUSTER KX2 WITH INSTRUMENT CLUSTER CONTROL MODULE J285, REMOVING AND INSTALLING .
Instrument Cluster Trim
- Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
