Overview - Horn

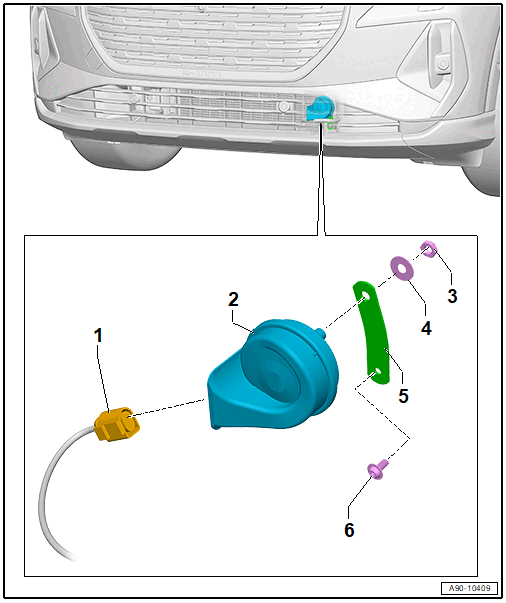

Fig 1: Exploded View Of Horn
GWWA90-10409Courtesy of AUDI OF AMERICA, LLC
  1. Connector
  2. Signal Horn and Dual Tone Horn -H1-
  3. Nut
    • 14 Nm
  4. Washer
  5. Bracket
  6. Bolt
    • 6 Nm
