Rear Lid Tail Lamp, Removing And Installing: Notes

-- Switch off the ignition. Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.

-- Turn the light switch off.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, STANDARD , or REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, SPORTBACK .

-- Position a narrow screwdriver -3- at the opening and remove the cover -1- from the tail lamp. Refer to ⁽⁾.

Courtesy of AUDI OF AMERICA, LLC

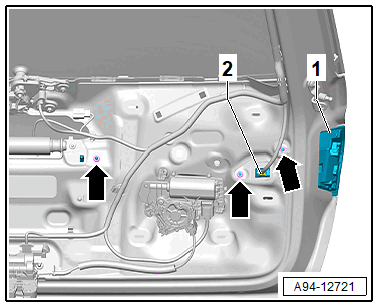

-- Remove the cover -1- forward -arrow-.

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- on both sides.

-- Remove the tail lamp assembly -1-.

Installing

Install in the reverse order of removal, while noting the following:

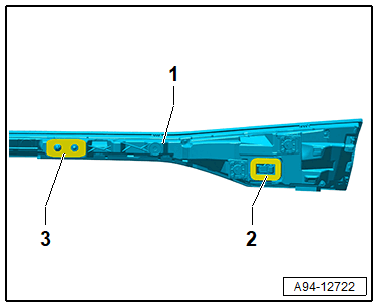

-- Check the self-adhesive seal -2- and -3- on the tail lamp -1- for damage.

Courtesy of AUDI OF AMERICA, LLC

Condition

• A damaged or incorrectly attached seal must be replaced.
