Overview - Rear Lid Tail Lamps

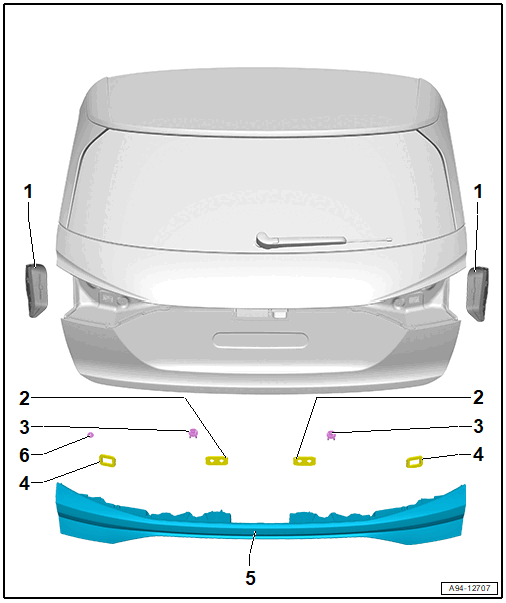

Fig 1: Exploded View Of Rear Lid Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

Side Cover
- Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
Seal
Mount
Seal
Center Tail Lamp -MX13-
- With integrated Left License Plate Lamp -X4-, Right License Plate Lamp -X5-
- Components cannot be replaced separately.
- Replace the tail lamp completely if one of the components is faulty
- Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
Nut
- Quantity: 6
- Tightening specification and sequence. Refer to Fig 2.

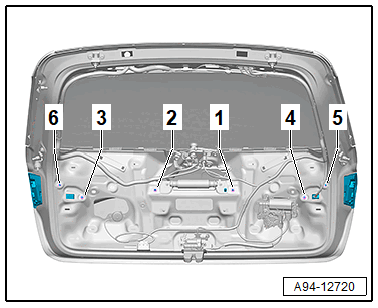

Fig 2: Tail Lamps Tightening Specification And Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Step	Component	Tightening Specification
1.	-1- through -6-	Install all the way by hand
2.	-1- through -6-	4 Nm
