Overview - Body Tail Lamps

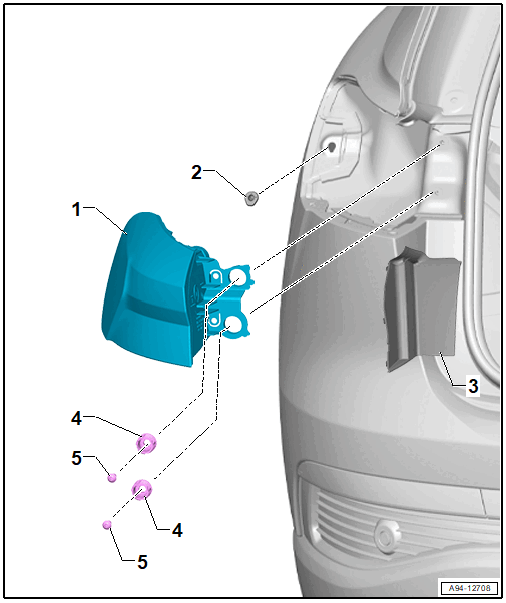

Fig 1: Exploded View Of Tail Lamp

GWWA94-12708

Courtesy of AUDI OF AMERICA, LLC

Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- If the LED tail lamp is faulty, replace completely
- Refer to Tail Lamp, Removing and Installing .
- Refer to Tail Lamp, Correcting Installation Position .
Clip Nut
Cover
- Refer to Tail Lamp, Removing and Installing .
Adjusting Nut
- Refer to Tail Lamp, Correcting Installation Position .
Bolt
- 3.5 Nm
