Overview - High-Mounted Brake Lamp

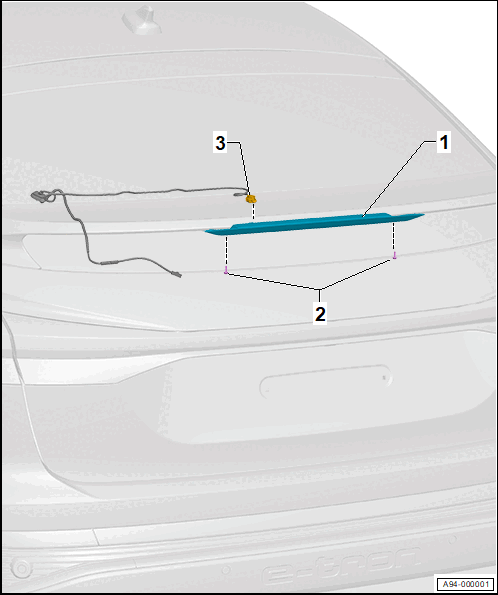

Fig 1: Identifying High-Mounted Brake Lamp Components, Q4 E-Tron Sportback
GWWA94-000001Courtesy of AUDI OF AMERICA, LLC
  1. High-Mounted Brake Lamp Bulb -M25-
  2. Bolt
    • 2.5 Nm
  3. Connector
