High-Mounted Brake Lamp Bulb, Removing And Installing: Removing

-- Switch off the ignition. Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.

-- Remove the spoiler. Refer to SPOILER, REMOVING AND INSTALLING, Q4 .

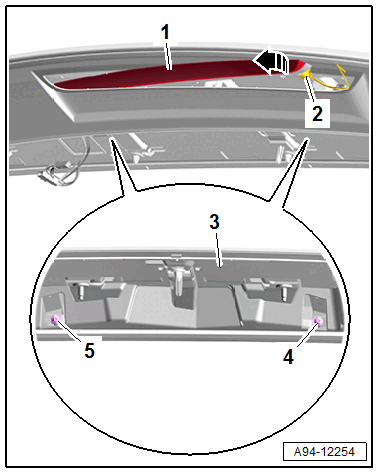

-- Remove the bolts -4- and -5-.

GWWA94-12254Courtesy of AUDI OF AMERICA, LLC

-- Pivot out the high-mounted brake lamp -1- on the right side -arrow-, until the connector -2- is accessible.

-- Disconnect the connector -2-.

-- Remove the high-mounted brake lamp -1-.
