High-Mounted Brake Lamp Bulb, Removing And Installing: Removing

-- Switch off the ignition. Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.

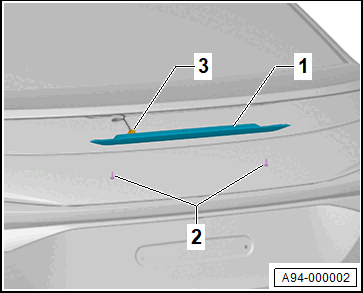

-- Remove the bolts -2-.

GWWA94-000002Courtesy of AUDI OF AMERICA, LLC

-- Remove the high-mounted brake lamp -1- from the spoiler, until the connector -3- is accessible.

-- Disconnect the connector -3-.

-- Remove the high-mounted brake lamp -1-.
