Right And Left Led Headlamp Power Output Module 1 A27/A31, Removing And Installing: Installing

Install in the reverse order of removal, while noting the following:

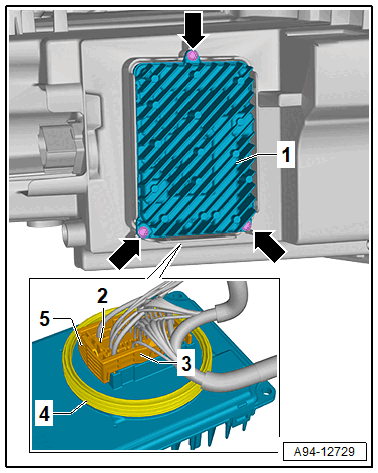

-- Check the seal -4- for damage.

Courtesy of AUDI OF AMERICA, LLC

If the Right LED Headlamp Power Output Module 1 -A27- / Left LED Headlamp Power Output Module 1 -A31- was replaced, then complete the test plan for replacing the control module:

-- Perform the "Control Module, Replacing" function using the Vehicle diagnostic tester . Refer to Diagnostic Entries .

Continuation
