Right And Left Led Headlamp Power Output Module 1 -A27-/-A31-, Removing And Installing, Led Headlamp: Removing

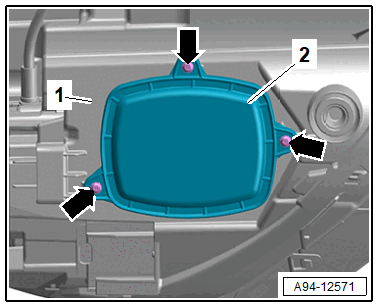

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the housing cover -2-.

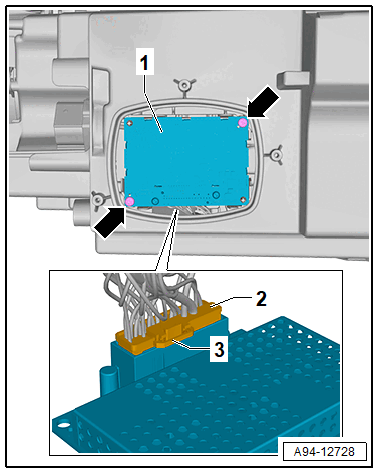

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the power output module -1- from the guides.

-- Press the locking mechanism -3- and disconnect the connector -2-.
