Overview - Headlamps

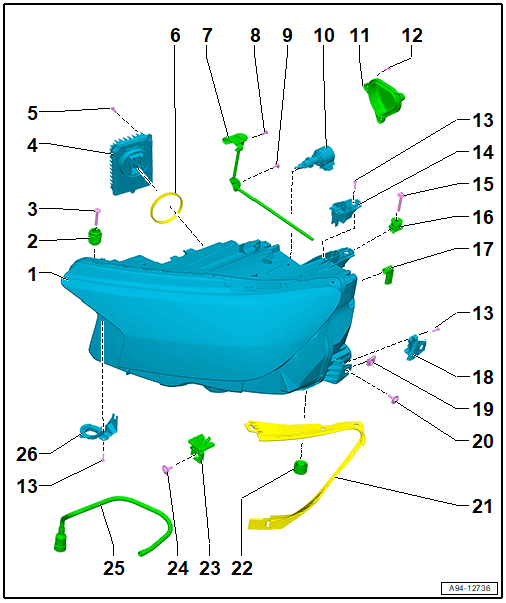

Fig 1: Exploded View Of Matrix LED Headlamps

Courtesy of AUDI OF AMERICA, LLC

Headlamps
- Left Front Headlamp -MX1-
- Right Front Headlamp -MX2-
- Refer to Headlamp, Removing and Installing .
Adjusting Nut
- For the headlamp height adjustment
Bolt
- 4.5 Nm
LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 A27/A31, REMOVING AND INSTALLING, LED HEADLAMP , or RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 A27/A31, REMOVING AND INSTALLING, MATRIX LED HEADLAMP .
Bolt
- Quantity: 3
- 1.5 Nm
Seal
Horizontal Headlamp Range Control
Bolt
- Quantity: 2
- 1.5 Nm
Bolt
- 1.5 Nm
Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48-/-V49-, REMOVING AND INSTALLING .
Housing Cover
- With seal
Bolt
- Quantity: 3
- 1.5 Nm
Bolt
- Quantity: 2
- 4.5 Nm
Upper Tab
- Refer to Headlamp Housing Repair Kit, Installing .
Bolt
- 4.5 Nm
Adjuster
- For adjusting the headlamp housing to the bumper contour
Bleed Pipe
Outer Tab
- Refer to Headlamp Housing Repair Kit, Installing .
Spring Nut
Bolt
- 4.5 Nm
Sealing Frame
- Refer to SEALING FRAME, REMOVING AND INSTALLING
Filter Membrane
- Refer to FILTER MEMBRANE, REMOVING AND INSTALLING
Headlamp Housing Mount
Bolt
- 4.5 Nm
Breather Hose
- For the headlamp housing
Inner Tab
- Refer to Headlamp Housing Repair Kit, Installing .
