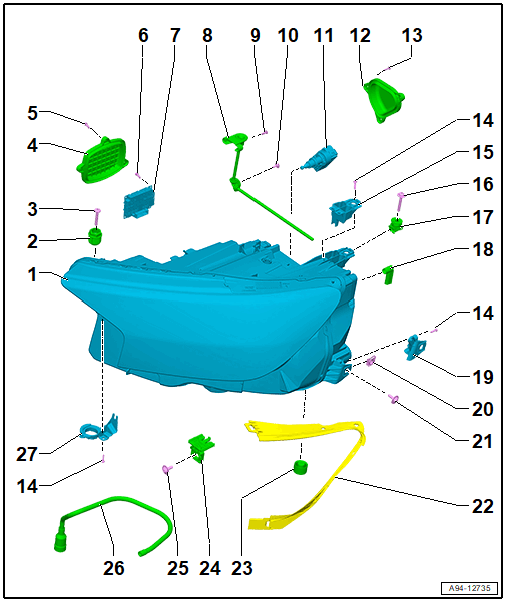

Overview - Headlamps
- Headlamps
- Left Front Headlamp -MX1-
- Right Front Headlamp -MX2-
- Refer to Headlamp, Removing and Installing .
- Adjusting Nut
- For the headlamp height adjustment
- Bolt
- 4.5 Nm
- Housing Cover
- With seal
- Bolt
- Quantity: 3
- 1.5 Nm
- Bolt
- Quantity: 2
- 1.5 Nm
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 A27/A31, REMOVING AND INSTALLING, LED HEADLAMP , or RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 A27/A31, REMOVING AND INSTALLING, MATRIX LED HEADLAMP .
- Horizontal Headlamp Range Control
- Bolt
- Quantity: 2
- 1.5 Nm
- Bolt
- 1.5 Nm
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48-/-V49-, REMOVING AND INSTALLING .
- Housing Cover
- With seal
- Bolt
- Quantity: 3
- 1.5 Nm
- Bolt
- Quantity: 2
- 4.5 Nm
- Upper Tab
- Refer to Headlamp Housing Repair Kit, Installing .
- Bolt
- 4.5 Nm
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Bleed Pipe
- Outer Tab
- Refer to Headlamp Housing Repair Kit, Installing .
- Spring Nut
- Bolt
- 4.5 Nm
- Sealing Frame
- Filter Membrane
- Headlamp Housing Mount
- Bolt
- 4.5 Nm
- Breather Hose
- For the headlamp housing
- Inner Tab
- Refer to Headlamp Housing Repair Kit, Installing .
