Headlamp, Removing And Installing: Removing

-- Switch off the ignition. Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.

-- Turn the light switch off.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

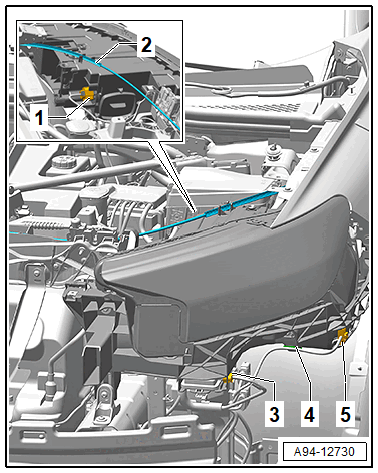

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the release cable -2-.

-- If installed, then disconnect the connector -5- and remove the bracket -4- for the wiring harness.

-- If installed, then disconnect the connector at the left headlamp -3-.

-- Free up the breather hose -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- and -3-.

-- Remove the headlamp housing -1- with the bracket -4- forward.

-- Remove the bolts -2- and -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing -3- from the bracket -1-.
