Overview - Automatic Headlamp Range Control

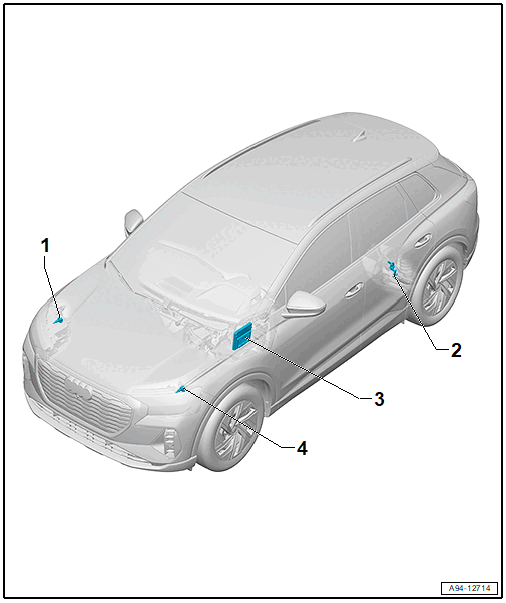

Fig 1: Identifying Automatic Headlamp Range Control Components

Courtesy of AUDI OF AMERICA, LLC

1. Right Headlamp Beam Adjustment Motor -V49-
   • Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48-/-V49-, REMOVING AND INSTALLING  .
2. Left Rear Level Control System Sensor -G76-
   • Refer to OVERVIEW - REAR LEVEL CONTROL SYSTEM SENSOR .
3. Vehicle Electrical System Control Module -J519-
   • Refer to Overview - Vehicle Electrical System Control Module .
4. Left Headlamp Beam Adjustment Motor -V48-
   • Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48-/-V49-, REMOVING AND INSTALLING  .
