Overview - Burglary Protection Control Module

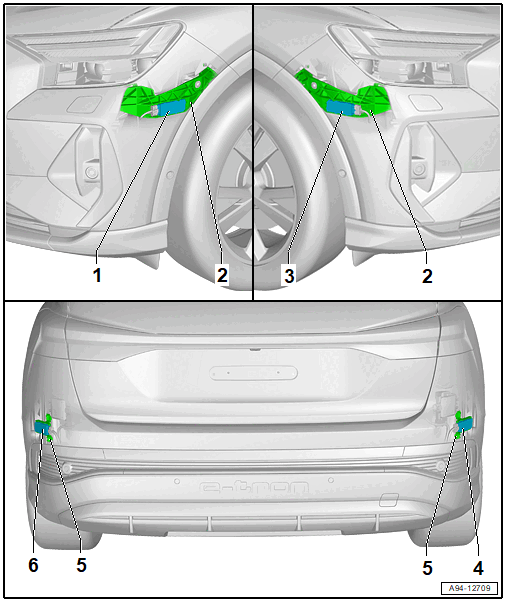

Fig 1: Identifying Burglary Protection Control Module Components

Courtesy of AUDI OF AMERICA, LLC

1. Burglary Protection Control Module -J1191-
   • Refer to BURGLARY PROTECTION CONTROL MODULE J1191/BURGLARY PROTECTION CONTROL MODULE 2 J1192, REMOVING AND INSTALLING  .
2. Headlamp Mount
   • Refer to OVERVIEW - LOCK CARRIER .
3. Burglary Protection Control Module 2 -J1192-
   • Refer to BURGLARY PROTECTION CONTROL MODULE J1191/BURGLARY PROTECTION CONTROL MODULE 2 J1192, REMOVING AND INSTALLING  .
4. Burglary Protection Control Module 4 -J1194-
   • Refer to BURGLARY PROTECTION CONTROL MODULE 3 J1193/ BURGLARY PROTECTION CONTROL MODULE 4 J1194, REMOVING AND INSTALLING  .
5. Bracket
6. Burglary Protection Control Module 3 -J1193-
   • Refer to BURGLARY PROTECTION CONTROL MODULE 3 J1193/ BURGLARY PROTECTION CONTROL MODULE 4 J1194, REMOVING AND INSTALLING  .
