Component Location Overview - Keyless Access Authorization System

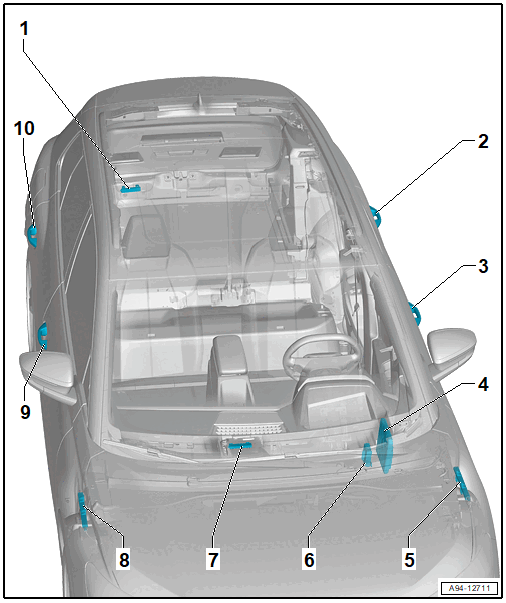

Fig 1: Identifying Keyless Access Authorization System Components

Courtesy of AUDI OF AMERICA, LLC

1. Access/Start System Antenna In Luggage Compartment -R137-
   • Refer to ACCESS/START SYSTEM ANTENNA IN LUGGAGE COMPARTMENT R137, REMOVING AND INSTALLING  .
2. Left Rear Exterior Door Handle -EX8-
   • With the Left Rear Exterior Door Handle Touch Sensor -G417-
   • Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM  .
3. Left Front Exterior Door Handle
   • LHD: Driver Exterior Door Handle -EX6-
   • RHD: Front Passenger Exterior Door Handle -EX7-
   • With Left Front Exterior Door Handle Touch Sensor -G605-
   • Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM  .
4. Vehicle Electrical System Control Module -J519-
   • Refer to Overview - Vehicle Electrical System Control Module .
5. Left Access/Start Authorization Antenna -R200-
   • Refer to ACCESS/START AUTHORIZATION ANTENNA, REMOVING AND INSTALLING  .
6. Access/Start Authorization Control Module -J518-
   • Refer to ACCESS/START AUTHORIZATION CONTROL MODULE J518, REMOVING AND INSTALLING  .
7. Access/Start System Antenna 1 in Vehicle Interior -R138-
   • Refer to ACCESS/START SYSTEM ANTENNA 1 IN VEHICLE INTERIOR R138, REMOVING AND INSTALLING  .
8. Right Access/Start Authorization Antenna -R201-
   • Refer to ACCESS/START AUTHORIZATION ANTENNA, REMOVING AND INSTALLING  .
9. Right Front Exterior Door Handle
   • LHD: Front Passenger Exterior Door Handle -EX7-
   • RHD: Driver Exterior Door Handle -EX6-
   • With Right Front Exterior Door Handle Touch Sensor -G606-
   • Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM  .
10. Right Rear Exterior Door Handle -EX9-
    • With the Right Rear Exterior Door Handle Touch Sensor -G418-
    • Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM  .
