Burglary Protection Control Module J1191/Burglary Protection Control Module 2 J1192, Removing And Installing: Removing

-- Switch off the ignition. Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

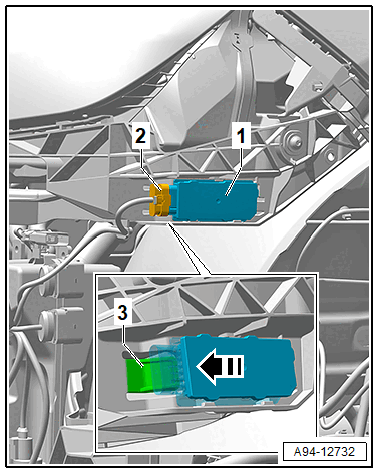

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tab -3-.

-- Remove the Burglary Protection Control Module -J1191- -1- -arrow-.
