Overview - Front Thorax Airbag

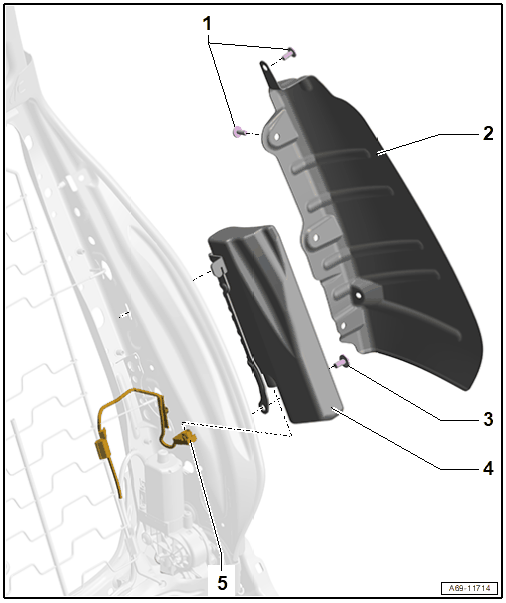

Fig 1: Exploded View Of Front Thorax Airbag

Courtesy of AUDI OF AMERICA, LLC

Bolts
- 5.6 Nm
- Replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
Support Plate
- Refer to Front Thorax Airbag with Igniter, Removing and Installing .
Bolt
- 10 Nm
- Replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
Front Thorax Airbag
- Refer to Front Thorax Airbag with Igniter, Removing and Installing .
Wire
- In the wiring harness for the backrest
