Overview - Knee Airbag

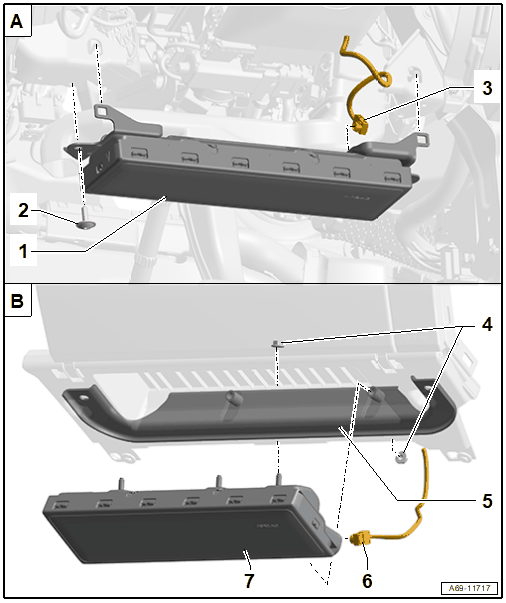

Fig 1: Exploded View Of Knee Airbag

Courtesy of AUDI OF AMERICA, LLC

Driver Side Knee Airbag
- Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, DRIVER SIDE
Bolt
- 10 Nm
- Replace after removing
- Quantity: 2
Connector
- For the Driver Knee Airbag Igniter -N295-
Nuts
- 10 Nm
- Replace after removing
- Quantity: 5
Knee Airbag Bracket
- Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE
Connector
- For the Front Passenger Knee Airbag Igniter -N296-
Front Passenger Knee Airbag
- Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE
