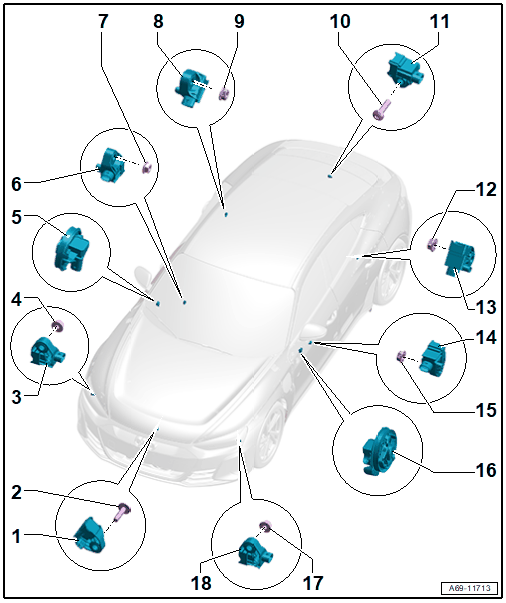

Overview - Airbag Crash Sensor

Courtesy of AUDI OF AMERICA, LLC

Crash Sensor for The Power and Control Electronics -G871-
- Refer to Crash Sensor for Power and Control Electronics -G871-, REMOVING AND INSTALLING
Bolt
- 9 Nm
Right Front Airbag Crash Sensor
- LHD: Passenger Side Front Airbag Crash Sensor - G284-
- RHD: Driver Front Airbag Crash Sensor -G283-
- Refer to Driver Front Airbag Crash SensorG283, Removing and Installing .
Nut
- 9 Nm
Right Front Thorax Airbag Crash Sensor
- LHD: Front Passenger Thorax Airbag Crash Sensor -G180-
- RHD: Driver Thorax Airbag Crash Sensor -G179-
- Refer to Driver Thorax Airbag Crash Sensor -G179- /Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
Right Thorax Airbag Crash Sensor in the B-Pillar
- LHD: Thorax Airbag Crash Sensor in the Front Passenger Side B-Pillar -G1102-
- RHD: Thorax Airbag Crash Sensor in the Driver Side B-Pillar -G1101-
- Refer to Thorax Airbag Crash Sensor in the Driver/Front Passenger Side B-Pillar G1101/G1102, Removing and Installing .
Nut
- 9 Nm
Right Rear Thorax Airbag Crash Sensor
- LHD: Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- RHD: Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Refer to Driver/Front Passenger Side Rear Thorax Airbag Crash Sensor G256/G257, Removing and Installing .
Nut
- 9 Nm
Bolt
- 9 Nm
Crash Sensor 2 for Power and Control Electronics -G1113-
- Refer to Crash Sensor 2 for Power and Control Electronics -G1113-, REMOVING AND INSTALLING
Nut
- 9 Nm
Left Rear Thorax Airbag Crash Sensor
- LHD: Driver Side Rear Thorax Airbag Crash Sensor -G256-
- RHD: Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Refer to Driver/Front Passenger Side Rear Thorax Airbag Crash Sensor G256/G257, Removing and Installing .
Left Thorax Airbag Crash Sensor in the B-Pillar
- LHD: Thorax Airbag Crash Sensor in the Driver Side B-Pillar -G1101-
- RHD: Thorax Airbag Crash Sensor in the Front Passenger Side B-Pillar -G1102-
- Refer to Thorax Airbag Crash Sensor in the Driver/Front Passenger Side B-Pillar G1101/G1102, Removing and Installing .
Nut
- 9 Nm
Left Thorax Airbag Crash Sensor
- LHD: Driver Thorax Airbag Crash Sensor -G179-
- RHD: Front Passenger Thorax Airbag Crash Sensor -G180-
- Refer to Driver Thorax Airbag Crash Sensor -G179- /Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
Nut
- 9 Nm
Left Front Airbag Crash Sensor
- LHD: Driver Front Airbag Crash Sensor -G283-
- RHD: Passenger Side Front Airbag Crash Sensor -G284-
- Refer to Driver Front Airbag Crash SensorG283, Removing and Installing .
